Industrial Valves

Features : Screwed on Bonnet, Inside Screw, Rising Stem, Renewable S.S. 410 Working Parts, with Back Seat Arrangement, Handwheel Operated

Body : 600 Psig (Hyd.)

Seat & Back Seat : 300 Psig (Hyd.)

Working Pressure : 150 Psig (Steam)

Testing Standard : BS EN 12266 Part-1

Features : Compact size, Piston type Screwed female BSP threads to BS-21

Max. Working Temp. : 80°C

Max. Upstream Pressure : 25 Bar

Adjustable Downstream Pressure at Max. Inlet Pressure : Min. : 0.8 bar, Max. : 5.5 Bar

Test Pressure : 25kg/cm² g (Hyd.)

Country of Origin : India

Features : Screwed in Cover, Integral Seat, Guided Disc, Screwed BSP Threads to BS-21

Body : 300 Psig (Hyd.)

Seat : 150 Psig (Hyd.)

Note : Other Screwed End Specification can be provided on request.

Features : Spring Loaded, Enclosed discharge Inlet Screwed male BSP taper threads as per BS 21

Body : 300 Psig (Hyd.)

Max. Set Pressure : 150 Psig

Max. Working Temp. : 220°C

Suitability : Water, Steam

Features : Bolted Bonnet, Yoke Type, Outside Screw, Rising Stem, Stainless Steel Trim with Back Arrangement Conforming BS 5160 / DIN 2401 Flanged Ends as per BSEN 1092-1, PN 40

Product Standard : BSEN-13709:02 (BS-5160)

Body : 60 Bar (Hyd.)

Seat : 40 Bar (Hyd.)

Max. Working Temp. : 400°C

Country of Origin : India

Features : Two Piece Design, Full Bore, Lever Operated (Blow Out Proof Stem), Renewable Seat, SS Trim Screwed Female BSP Parallel Threads (BS-21)

Body : 500 Psi g (Hyd.)

Seat : 250 Psi g (Hyd.), 150 Psi g (Steam)

Suitability : Water, Steam, Oil, Air

Country of Origin : India

Features : Wafer Type, Without Lugs, Renewable Liner, Suitable for inseration between flanges Flanged as per ANSI B16.1 Class 125 DIN ND-10 & BS-10 Table ‘E’

Body : 21 Bar (Hyd.)

Seat : 14 Bar (Hyd.)

Testing Standard : IS 13095

Features : Screwed in Bonnet, Inside Screw, Rising Stem, Flanged Ends as per BS-10 Table ‘D’ (Undrilled)

Body : 300 Psig (Hyd.)

Seat : 200 Psig (Hyd.)

Testing Standard : BS EN 12266 Part-1

Suitability : Water, Oil

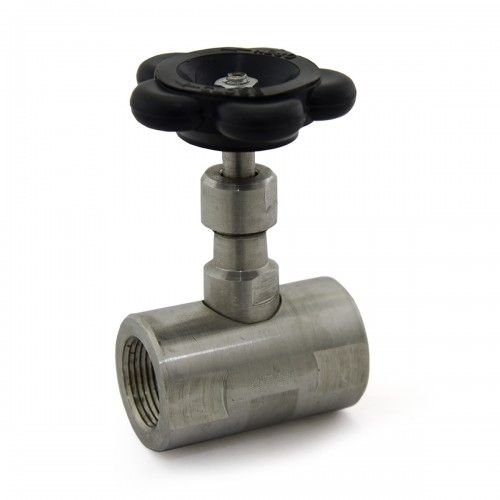

Features : One Piece Design, Reduced Bore, Renewable Needle Type Disc, SS Trim, Screwed Female NPT Threads as per ASME B1.20.1

Product Standard : API-602

Body : 207 Bar (Hyd.)

Seat : Seat – 152 Bar (Hyd.)

Testing Standard : API-598

Features : Straight Pattern, Open Discharge, Screwed male Inlet BSP Threads to BS 21

Body : 300 Psig (Hyd.)

Max. Set Pressure : 150 Psig (Steam at 225oC)

Note : Other Screwed End Specification can be provided on request.

Suitability : Steam, Air

Features : Bolted Bonnet, Rack and Pinion Operated Flanged Ends as per BS-10 Table ‘J’ FF (Undrilled)

Body : 700 Psi g (Hyd.)

Max. B.O.P. : 350 Psi g at 400°C

Suitability : Water, Steam

Nominal Size (mm) : 25-65
