Ball Valves

  • AV-269 Cast Iron Ball Float Steam Trap Valve

    AV-269 Cast Iron Ball Float Steam Trap Valve

    Features : Horizontal Type, Side Inlet Side Outlet, SS working parts Screwed Female BSP Parallel Threads to (BS-21)

    Body : 300 Psig (Hyd.) Steam : 150 Psig

    Max. Working Pressure : 150 Psig

    Max. Working Temp. : 220°C

    Suitability : Water, Steam, Oil

  • FV-501 Gun Metal Ball Valve

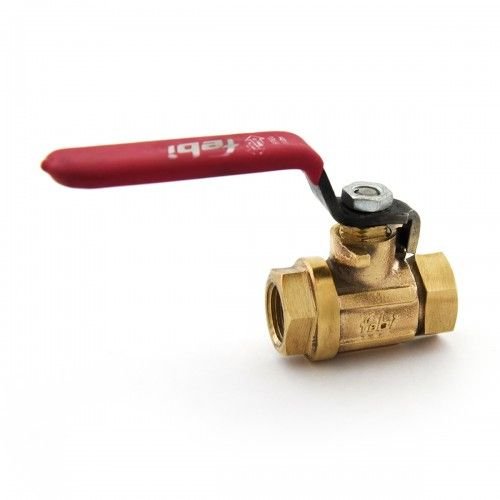

    FV-501 Gun Metal Ball Valve

    Country of Origin : India

    Features : Two Piece Design, Full Bore, Lever Operated (Blow Out Proof Stem), Renewable Seat, SS Trim Screwed Female BSP Parallel Threads (BS-21)

    Body : 500 Psi g (Hyd.)

    Seat : 250 Psi g (Hyd.), 150 Psi g (Steam)

    Suitability : Water, Steam, Oil, Air

  • FV-502 Gun Metal Ball Valve

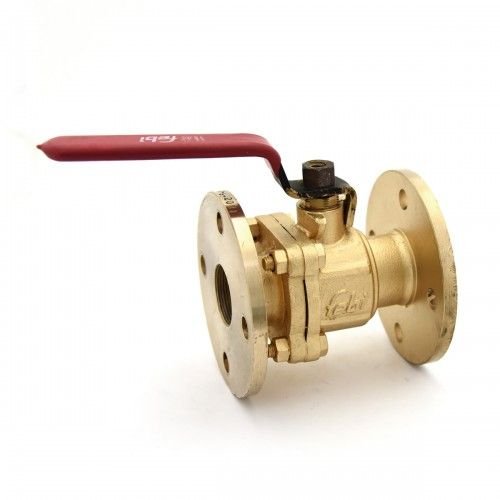

    FV-502 Gun Metal Ball Valve

    Country of Origin : India

    Features : Two Piece Design, Lever Operated (Blow Out Proof Stem), Renewable Seat, SS Trim Flanged End to BS-10 Table ‘D’ (Undrilled)

    Body : 348 Psi g (Hyd.)

    Seat : 255 Psi g (Hyd.), 150 Psi g (Steam)

    Nominal Size (mm) : 15-125mm

  • FV-503 Cast Iron Ball Valve

    FV-503 Cast Iron Ball Valve

    Country of Origin : India

    Features : Two Piece Design, Lever Operated (Blow Out Proof Stem), Renewable Seat, SS Trim Screwed Female Parallel Threads as per IS-554

    Product Standard : IS-9890

    Body : 300 Psi g (Hyd.)

    Seat : 220 Psi g (Hyd.)

  • FV-504 Cast Iron Ball Valve

    FV-504 Cast Iron Ball Valve

    Country of Origin : India

    Features : Three Piece Design, Lever Operated (Blow Out Proof Stem), Renewable Seat, SS Trim Flanged End to BS-10 Table ‘F’ (Undrilled)

    Body : 300 Psi g (Hyd.)

    Seat : 200 Psi g (Hyd.), 150 Psi g (Steam)

    Nominal Size (mm) : 15-200mm

  • FV-505 Forged Brass Ball Valve

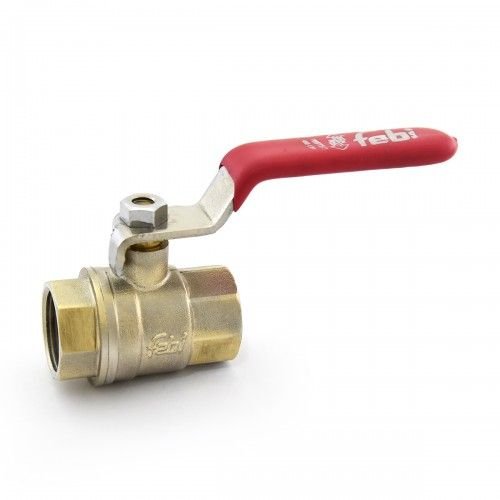

    FV-505 Forged Brass Ball Valve

    Country of Origin : India

    Features : Two Piece Design, Lever Operated (Blow Out Proof Stem), Renewable Seat Screwed Female BSP Parallel Threads (BS-21)

    Body : 550 Psi g (Hyd.)

    Seat : 400 Psi g (Hyd.), 100 Psi g (Steam)

    Suitability : Water, Gas, Oil, Air

  • FV-509 C.S.S. Investment Casting Ball Valve

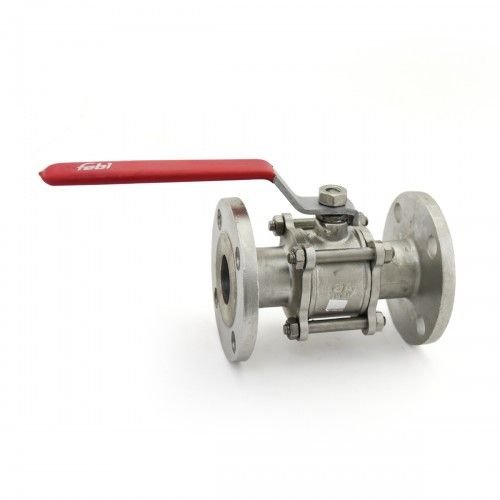

    FV-509 C.S.S. Investment Casting Ball Valve

    Country of Origin : India

    Features : Two Piece Design, Full Bore, Lever Operated (Blow Out Proof Stem), Renewable Seat, SS Trim Flanges as per ANSI B16.5 Class-150 (Drilled)

    Product Specification : BS-17292/ API-6D

    Body : 30 Bar (Hyd.)

    Seat : 22 Bar (Hyd.)

  • FV-510 C.S.S. Investment Casting Ball Valve

    FV-510 C.S.S. Investment Casting Ball Valve

    Country of Origin : India

    Features : Three Piece Design, Full Bore, Renewable Seat, SS 304 Trim Flanges as per ANSI b16.5 Class-150 (Drilled)

    Product Specification : BS-17292/ API-6D

    Body : 30 Bar (Hyd.)

    Seat : 22 Bar (Hyd.)

  • FV-515 C.C.S. Investment Casting Ball Valve

    FV-515 C.C.S. Investment Casting Ball Valve

    Country of Origin : India

    Features : Full Bore, Three Piece Design, Renewable Seat, SS Trim Screwed Female Ends BSP/BSPT/NPT/ Socket welded ends as per ASME B16.11

    Body : 178 Bar (Hyd.)

    Seat : 76 Bar (Hyd.)

    Nominal Size (mm) : 15-50mm

  • FV-516 C.S.S. Investment Casting Ball Valve

    FV-516 C.S.S. Investment Casting Ball Valve

    Country of Origin : India

    Features : Three Piece Design, Full Bore, Renewable Seat, SS Trim Flanges as per ASME B16.5 Class 150 (Drilled)

    Product Standard : BS-17292

    Body : 30 Bar (Hyd.)

    Seat : 22 Bar (Hyd.)
