Safety Valves

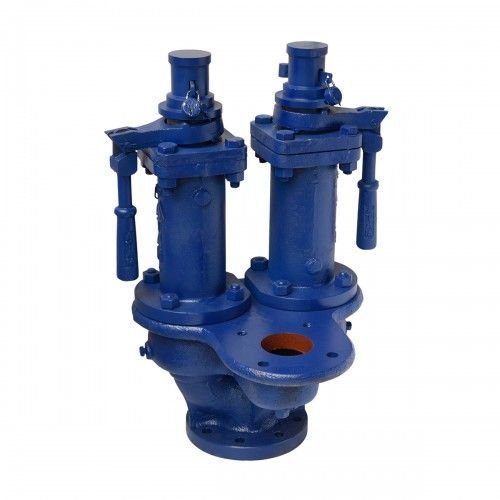

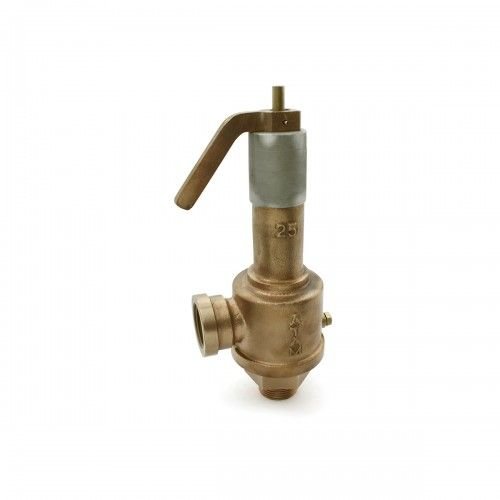

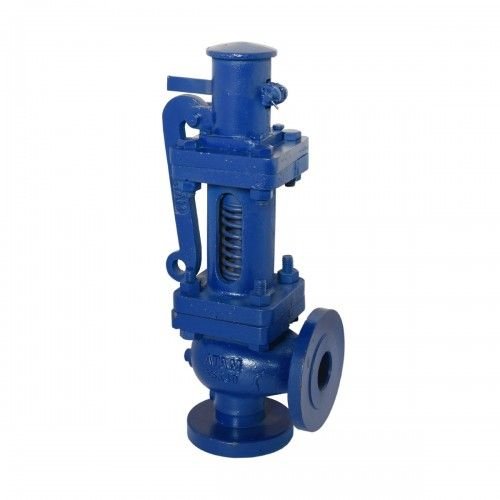

Leading Manufacturers, Exporters, Wholesaler and Retailer of AV-230 Bronze Spring Loaded Safety Valve, AV-261 Cast Iron Spring Loaded Single Post High Lift Safety Valve, AV-262 Cast Iron Double Post Safety Valve, AV-283 C.C.S. Single Post Hi-Lift Safety Valve, AV-284 Cast Steel Double Post Safety Valve, AV-285 Cast Carbon Steel Full-Lift Safety Valve and Cast Iron Full Lift Safety Valve from Jalandhar.
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Download |  View |
| Features | Spring Loaded, Enclosed discharge Inlet Screwed male BSP taper threads as per BS 21 |
| Body | 300 Psig (Hyd.) |
| Max. Set Pressure | 150 Psig |
| Max. Working Temp. | 220°C |
| Suitability | Water, Steam |
| Brand Name | Atam Valves |
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Download | View |
| Features | Inlet Flanged to BS-10 Table ‘F’ FF (Undrilled) Outlet Flanged to BS-10 Table ‘D’ FF (Undrilled) |
| Body Test Pressure | 300 Psig (Hyd.) |
| Max. set pressure | 150 Psig (Steam) |
| Working Temp. | 220°C |
| Suitability | Water, Steam |
| Brand Name | Atam Valves |
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Download | View |
| Features | High Lift, Spring Loaded with Stainless Steel Seat, Stainless Steel Stem Inlet Flanged to BS-10 Table ‘F’ FF (Undrilled), Outlet Flanged to BS-10 Table ‘D’ FF (Undrilled) |
| Body | 300 Psig (Hyd.) |
| Max. set Pressure | 150 Psig (Steam) |
| Max. Working Temp. | 220°C |
| Suitability | Steam |
| Brand Name | Atam Valves |
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Download | View |
| Features | High Lift with Stainless Steel Steam, Spring Loaded, Right Angle Pattern, High Lift, Renewable Seat & Disc Inlet Flange to BS-10 Table-H F/F (Undrilled), Outlet Flanged to BS-10 Table-D FF (Undrilled) |
| Body | 500 Psi g (Hyd.) |
| Max. Set Pressure | 250 Psi g |
| Max. Working Temp. | 400°C |
| Suitability | Steam |
| Brand Name | Atam Valves |
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Download | View |
| Features | High Life, Spring Loaded with S.S. Seat, S.S. Stem Inlet Flange to BS-10 Table ‘H’ FF (Undrilled), Outlet Flanged to BS-10 Table-D (Undrilled) |
| Body | 500 Psig (Hyd.) |
| Max. Working Pressure | 250 Psig (Steam) |
| Max. Working Temp. | 400°C |
| Suitability | Steam |
| Brand Name | Atam Valves |
| Business Type | Manufacturer, Exporter, Supplier |
| Download | View |
| Features | Right Angle Pattern, Spring Loaded, Full Lift, Renewable Seat & Disc, With SS working part Inlet Flange to BS-10 Table ‘H’ FF (Undrilled), Outlet Flanged to BS-10 Table ‘D’ FF (Undrilled) |
| Max. Set Pressure | 250 Psig |
| Max. Working Temp. | 400°C |
| Body | 500 Psig (Hyd.) |
| Suitability | Steam |
| Brand Name | Atam Valves |
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Download | View |
| Country of Origin | India |
| Size | 1.1/2inch, 1.1/4inch, 1/2inch, 1inch, 2inch, 3/4inch |
| Type | Ci Valves |
| Material | Cast Iron |
| Certification | AN ISO 9001:2015 AND 14001:2015 CERTIFIED COMPANY |
| Application | Water Fitting |
| Color | Blue |
| Feature | Durable |
| Pattern | Plain |
| Pressure | Medium |
| Number Of Way | 2way |
| Brand Name | Atam Valves |
| Media | Water |
| Port Size | 15 MM |
| Temperature Of Media | 220 |
| Features | Spring Loaded, With Stainless Steel, Working Parts Inlet Flanged to BS-10 Table ‘F’ FF (Undrilled), Outlet Flanged to BS-10 Table ‘D’ FF (Undrilled) |
| Body | 300 Psig (Hyd.) |
| Max. set pressure | 150 Psig (Steam) |
| Max. working temp. | 220°C |
| Suitability | Steam |
| Product Code | AV--265 |
| Port | Ludhiana and Bombay |
| Payment Terms | L/C, D/P, MoneyGram, Other |
| Delivery Time | Ready Stock |
| Packaging Details | As per customers requirements. |
Spring Loaded, With Stainless Steel, Working Parts
Inlet Flanged to BS-10 Table ‘F’ FF (Undrilled), Outlet Flanged to BS-10 Table ‘D’ FF (Undrilled)
Test Pressure
Body : 300 Psig (Hyd.)
Max. set pressure : 150 Psig (Steam)
Max. working temp. : 220°C
