Gate Valves

Features : Screwed in Bonnet, Inside Screw, Non-Rising Stem, Integral Seat, Handwheel Operated, Screwed Female Parallel Threads to IS-554

Body : 1.5 MPa (Hyd.)

Seat & Back Seat : 1.0 MPa (Hyd.)

Max. Working Pressure : 1.0 MPa (Hyd.)

Max. Working Temperature : 45°C

Features : Screwed in Bonnet, Inside Screw, Non-Rising Stem, Flanged Ends as per IS 778, Class 1

Body : 1.5 MPa (Hyd.)

Seat : 1.0 MPa (Hyd.)

Max. Working Pressure : 1.0 MPa (Hyd.)

Max. Working Temperature : Upto 45°C

Features : Screwed in Bonnet, Inside Screw, Rising Stem, Without Yoke, Screwed or Female Parallel Threads to IS 554

Body : 2.4 MPa (Hyd.)

Seat : 1.6 MPa (Hyd.)

Max. Working Pressure : 1.6 MPa (Hyd.)

Max. Working Temperature : Upto 45°C

Features : Screwed in Bonnet, Inside Screw, Non-Rising Stem, Flanged as per IS 778 Class 2

Body : 2.4 MPa (Hyd.)

Seat : 1.6 MPa (Hyd.)

Max. Working Pressure : 1.6 MPa (Hyd.)

Max. Working Temperature : Upto 45°C

Features : Yoke Type, Outside Screw, Rising Stem, Flanged Ends as per IS 1538

Body : 1.5 MPa (Hyd.)

Seat & Back Seat : 1.0 MPa (Hyd.)

Testing Standard : BS EN 1171 (BS 5150)

Product Standard : BS EN 12266 (Part 1)

Features : Bolted Bonnet, O/S & Yoke Type, Rising Stem, Renewable Seat, Solid or Flexible Wedge , SS 304 Trim. Flanges as per ASME B16.5, CLass-150 RF (Drilled)

Product Standard : BS-1414/API-600

Body : 30 Bar (Hyd.)

Seat : 22 Bar (Hyd.)

Testing Standard : BSEN 12266-1/ API-598

Features : Reduced Bore, Bolted Bonnet, O/S & Yoke Type, Rising Stem, Renewable Seat, Solid Wedge, SS Trim Screwed Female NPT Threads as per ASME B1.20.1 .

Body : 207 Bar (Hyd.)

Seat : 152 Bar (Hyd.)

Testing Standard : API-598/ BSEN-12266-1

Suitability : Water, Steam, Oil

Features : Standard Bore, Bolted Bonnet, O/S & Yoke Type, Rising Stem, Renewable Seat, SS Trim Flanges as per ASME B 16.5 CL-600 R.F. (Drilled)

Product Standard : API-602/EN-15761

Body : 153 Bar (Hyd.)

Seat : 112 Bar (Hyd.)

Testing Standard : API-598/ BSEN-12266-1

Features : Screwed in Bonnet, Inside Screw, Rising Stem, Flanged Ends as per BS-10 Table ‘D’ (Undrilled)

Body : 300 Psig (Hyd.)

Seat : 200 Psig (Hyd.)

Testing Standard : BS EN 12266 Part-1

Suitability : Water, Oil

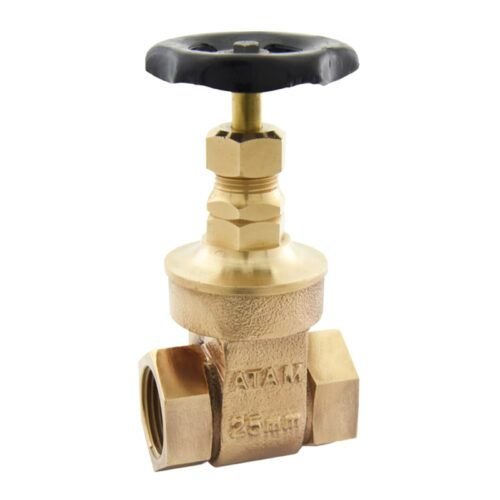

Features : Screwed in Bonnet, Inside Screw, Non-Rising Stem, Integral Seat, Solid Wedge Screwed Female BSP Parallel Threads to BS-21

Body : 350 Psig (Hyd.)

Seat : 260 Psig (Hyd.)

Testing Standard : BS EN 12266 Part-1

Suitability : Water, Oil

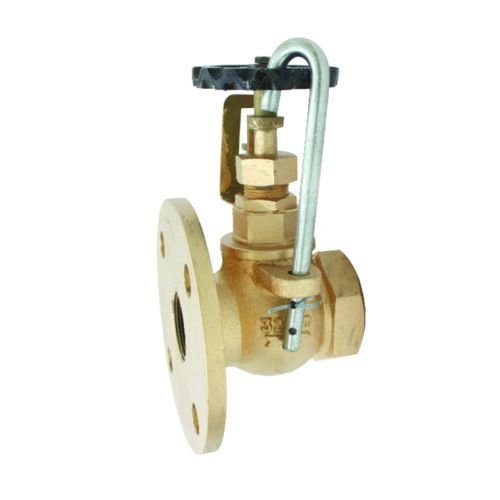

Features : Screwed in Bonnet, Inside Screw, Non Rising Stem with Open-Shut Indicator & Locking arrangement. One Side Flange End to BS-10 Table ‘D’ & Other Side Screwed Ends to BS-21

Body : 300 Psig (Hyd.)

Seat : 200 Psig (Hyd.)

Suitability : Water, Oil

Nominal Size (mm) : 15-50
