Globe Valves

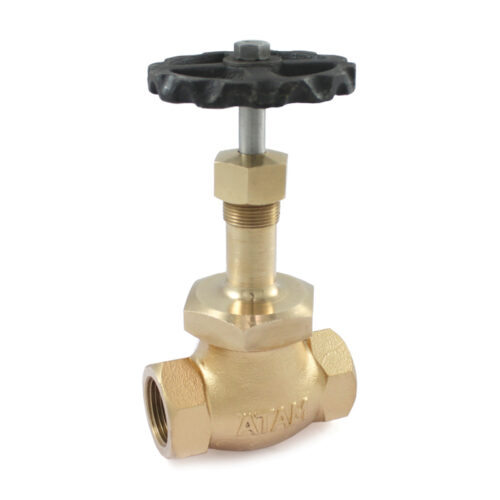

Features : Screwed on Bonnet, Inside Screw, Rising Stem, Renewable S.S. 410 Working Parts, with Back Seat Arrangement, Handwheel Operated

Body : 600 Psig (Hyd.)

Seat & Back Seat : 300 Psig (Hyd.)

Working Pressure : 150 Psig (Steam)

Testing Standard : BS EN 12266 Part-1

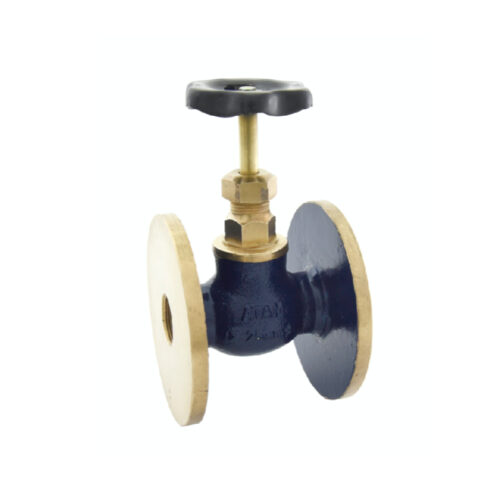

Features : Screwed in Bonnet, Inside Screw, Rising Stem, Integral Seat, Plug Type Disc Flanged Ends as per IS 778, Class 1

Body : 1.5 MPa (Hyd.),

Seat : 1.0 MPa (Hyd.)

Max. Working Pressure : 1.0 MPa,

Max. Working Temperature : 45°C

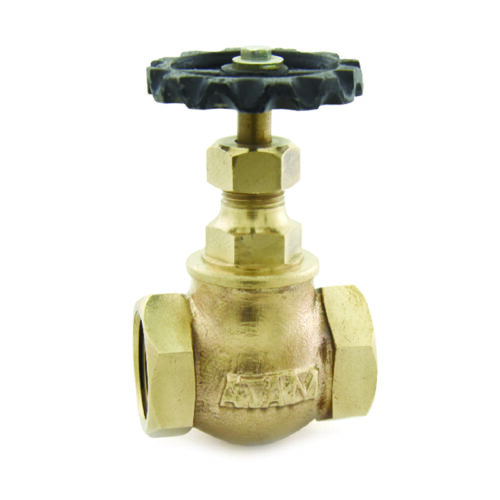

Features : Screwed in Bonnet, Inside Screw, Rising Stem, Integral Seat, Screwed Ends

Body : 1.5 MPa (Hyd.)

Seat : 1.0 MPa (Hyd.)

Max. Working Pressure : 1.0 MPa at 45°C

Testing Standard : IS-778

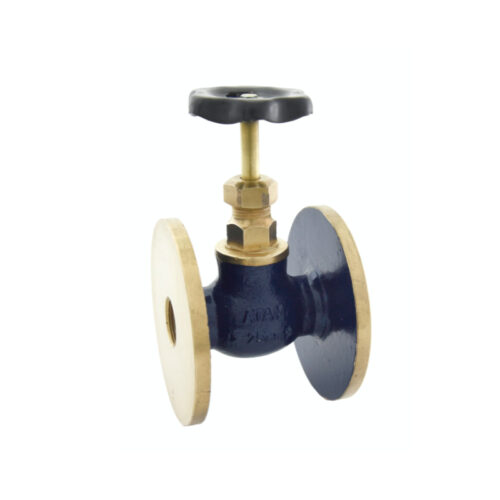

Features : Screwed in Bonnet, Inside Screw, Rising Stem, Integral Seat, Plug Type Disc, Flanged Ends

Body : 2.4 MPa (Hyd.)

Seat : 1.6 MPa (Hyd.)

Max. Working Pressure : 1.6 MPa (Hyd.)

Max. Working Temperature : Upto 45°C

Features : Screwed in Bonnet, Inside Screw, Rising Stem, Integral Seat, Screwed Ends

Body : 2.4 MPa (Hyd.)

Seat : 1.6 MPa (Hyd.)

Max. Working Pressure : 1.6 MPa (Hyd.) at 45°C

Testing Standard : IS-778

Features : Cast Steel Junction Steam Stop Valve, Bolted Bonnet, Outside screw, Yoke Type, Renewable Seat & Disc, SS Trim with Back Seat Flanged Ends as per BSEN 1092-1, RF PN 40 (Drilled)

Product Standard : BSEN-13709

Body : 60 Bar (Hyd.)

Seat : 40 Bar (Hyd.)

Max. Working Temp. : Upto 400°C

Features : Reduced Bore, Bolted Bonnet, O/S & Yoke Type, Rising Stem, Renewable Seat & Plug Type Disc, SS Trim Screwed Female NPT Threads as per ASME B1.20.1 .

Product Standard : API-602/ BSEN-15761

Body : 207 Bar (Hyd.)

Seat : 152 Bar (Hyd.)

Testing Standard : API-598/ BSEN-12266-1

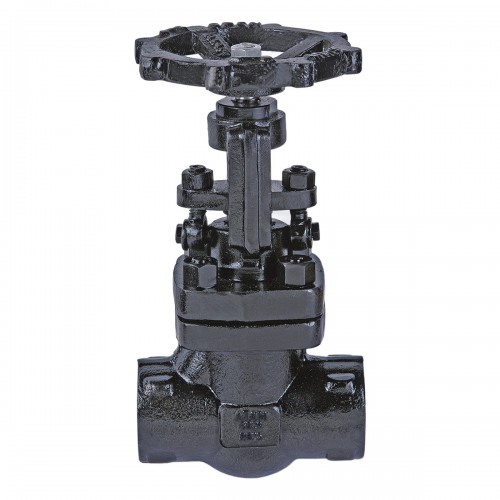

Features : Reduced Bore, Bolted Bonnet, O/S & Yoke Type, Rising Stem, Renewable Seat & Plug Type Disc, SS Trim Socket Welded Ends as Per ASME B-16.11

Product Standard : API-602/ BSEN-15761

Body : 207 Bar (Hyd.)

Seat : 152 Bar (Hyd.)

Testing Standard : API-598/ BSEN-12266-1

Features : Standard Bore, Bolted Bonnet, O/S & Yoke Type, Rising Stem, Renewable Plug Type Disc, SS Trim Socket Welded Ends as per ASME B-16.11

Product Standard : API-602/EN-15761

Body : 384 Bar (Hyd.)

Seat : 281 Bar (Hyd.)

Testing Standard : BSEN-12266-1

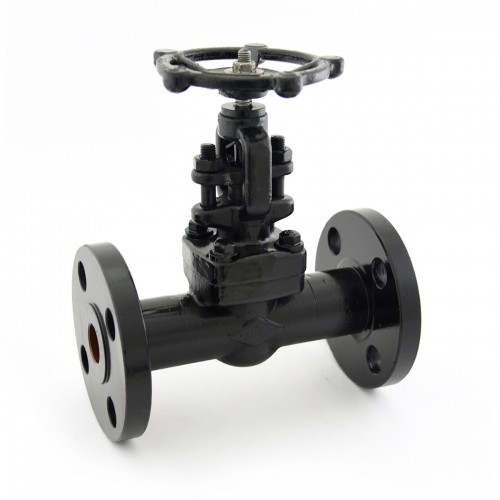

Features : Standard Bore, Bolted Bonnet, O/S & Yoke Type, Rising Stem, Renewable Seat, Renewable Plug Type Disc, SS Trim Flanges as per ASME B 16.5 CL-600 R.F. (Drilled)

Product Standard : API-602/EN-15761

Body : 153 Bar (Hyd.)

Seat : 112 Bar (Hyd.)

Testing Standard : API-598/ BSEN-12266-1

Features : Screwed in Bonnet, Inside Screw, Rising Stem, Integral Seat, Screwed Female BSP Parallel Threads to BS 21

Body : 300 Psig (Hyd.)

Seat : 200 Psig (Hyd.)

Testing Standard : BS EN 12266 Part-1

Suitability : Water, Oil

Features : Screwed in Bonnet, Inside Screw, Rising Stem, Plug Type, Handwheel Operated, Integral Seat, Disc Flanged Ends as per BS-10 Table ‘D’

Body : 300 Psig (Hyd.)

Seat : 200 Psig (Hyd.)

Testing Standard : BS EN 12266 Part-1

Suitability : Water, Oil

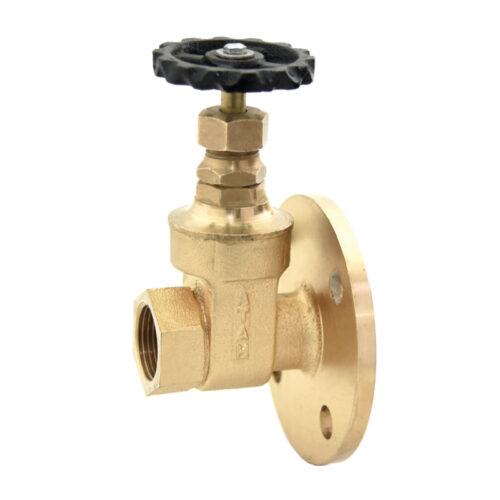

Features : Screwed in Bonnet, Inside Screw, Rising Steam. Inlet Flange to BS-10 Table-D & Outlet screwed Female ends to BS-21

Body : 300 Psig(Hyd.)

Seat : 200 Psig (Hyd.)

Suitability : Water, Oil

Brand Name : Atam Valves

Features : Screwed in Bonnet, Inside Screw, Rising Stem, With locking arrangement & position Indicator. Flanges as per BS 10 Table ‘D’ (Undrilled)

Body : 300 Psig (Hyd.)

Seat : 200 Psig (Hyd.)

Suitability : Water, Oil

Material : Bronze
